Product Details
Place of Origin: CHINA
Brand Name: P&Q
Model Number: HTCW500
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Packaging Details: wooden case for export
Delivery Time: 15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 10 sets per week
|
Body Material:
|
SS304
|
Weighing Range:
|
25kg
|
Max Speed:
|
30pcs/min
|
Min Scale:
|
0.001kg
|
Max Accuracy:
|
±10g
|
Betl Width:
|
500mm
|
|
Body Material:
|
SS304
|
|
Weighing Range:
|
25kg
|
|
Max Speed:
|
30pcs/min
|
|
Min Scale:
|
0.001kg
|
|
Max Accuracy:
|
±10g
|
|
Betl Width:
|
500mm
|

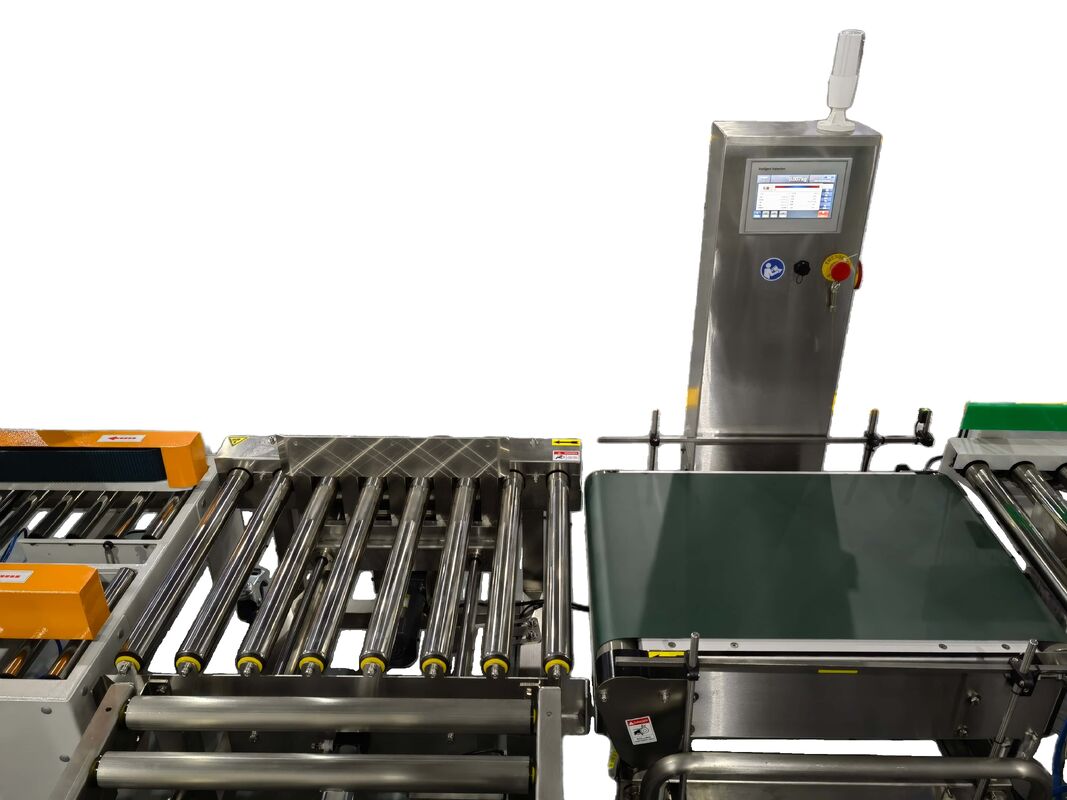

25kg Checkweigher | Dynamic Inline Checkweigher with Rejecting System | Case Checkweigher
Description
CW series checkweighers are specifically designed for high demand of weighing accuracy, stability and intelligent operation with core invention patents. Imported well-known brand components and integrated circuits are selected, high-precision CNC structure design is adopted, and advanced technologies such as patented weighing algorithms are used to achieve industry-leading detection performance.
Specifications
| NO. | ITEM | NOTE |
| 1 | Frame Material | SS304 |
| 2 | Weighing Range | 25kg |
| 3 | Minimum Scale | 0.001kg |
| 4 | Max Accuracy | ±10g |
| 5 | Max Speed | 30pcs/min |
| 6 | Parameter Setting | auto setting by intelligent product self-study |
| 7 | Weighing Belt Width | 500mm |
| 8 | Weighing Belt Length | 800mm |
| 9 | Belt Height | 650-750mm |
| 10 | Moving Direction | From left to right when facing touch screen |
| 11 | Alarm Mode | sound-light alarm |
| 12 | Reject Mode | Roller push rod (optional) |
| 13 | Power | AC220-240V 1Phase 750W |
| 14 | Working Environment | Free of obvious vibration and air flow |
Pictures
Features
1. Ultra-high-speed load cell from Germany with excellent frequency response.
2. FPGA hardware filter with intelligent algorithm, excellent weighing processing speed.
3. Intelligent self-learning technology, automatic setting of weighing parameters, easy to use.
4. Ultra-fast dynamic weight tracking and automatic compensation technology can effectively improve the detection stability.
5. Friendly operation interface on touch screen, easy to operate.
6. 40 product presets, easy to edit and switch.
7. Large-capacity sorting log, with data output traceability function.
8. CNC machining of structural components with excellent dynamic stability.
9. High quality SS304 frame, strong and durable;
10. Optional function such as RS232 interface,USB interface,Ethernet interface,printer, waterproof etc.
Dimensional Drawing
