Product Details
Place of Origin: CHINA
Brand Name: P&Q
Model Number: HT-MT3015
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Packaging Details: wooden case for export
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 sets per week
|
Detection Height:
|
150mm
|
Detection Width:
|
300mm
|
Operator Interface:
|
Touch Screen
|
Conveyor Length:
|
1500mm
|
Conveyor Belt Width:
|
Variable Speed; Up To 280m/min
|
Power Supply:
|
220VAC
|
|
Detection Height:
|
150mm
|
|
Detection Width:
|
300mm
|
|
Operator Interface:
|
Touch Screen
|
|
Conveyor Length:
|
1500mm
|
|
Conveyor Belt Width:
|
Variable Speed; Up To 280m/min
|
|
Power Supply:
|
220VAC
|

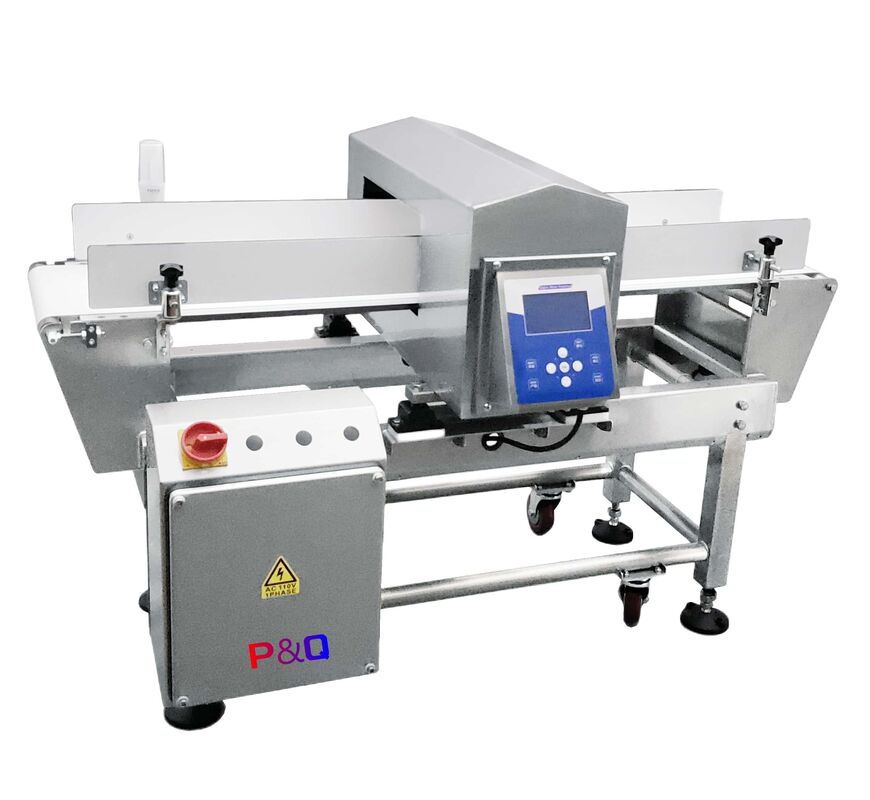

Conveyor Belt Metal Detectors | Metal Detection Equipement
Description
MT series metal detectors are specially designed for high demand of sensitivity, stability and intelligent detection. Using ARM+FPGA architecture design, with advanced technologies such as patented adaptive algorithms, it achieves industry-leading detection performance.
Specifications
| NO. | Item | Note |
| 1 | Frame Material | SS304 |
| 2 | Channel Size (W*H) | 300*150mm |
| 3 | Product Size (W*H) | 250*110mm |
| 4 | Sensitivity without product | Fe≥0.8, NF≥1.2, SUS304≥1.5 |
| 5 | Auto Setting | Intelligent self-learning(one key auto setting after only time of product study) |
| 6 | Conveyor Belt Width | 220mm |
| 7 | Conveyor Belt Length | 1500mm |
| 8 | Conveyor Belt Height | 720~850mm |
| 9 | Moving Direction | From left to right when facing control panel |
| 10 | Typical Belt Speed | 28m/min |
| 11 | Product Weight | Max 10kg |
| 12 | Alarm Mode | Sound-light alarm |
| 13 | Reject Mode | air blow/pusher/sliding bar/flip/belt drop |
| 14 | Power | AC220V 1 phase 200W |
| 15 | Working Environment | Free of high-power frequency converter, obvious vibration and dynamic metal objects |
Note: The actual detection sensitivity will be affected by the product type, speed, temperature and working environment.
Features
1. Intelligent learning function, automatic parameter setting, easy to operate.
2. X-R orthogonal decomposition and multiple filtering algorithms, better anti-interference performance.
3. Phase intelligent tracking and automatic balance adaptive technology, better stability.
4. Anti-interference photoelectric isolation driver, remote installation of operation panel.
5. DDS all-digital and digital signal processing technology improves detection accuracy.
6. American FRAM ferroelectric memory, lossless storage of 50 product parameters.
7. Can detect various metal materials such as iron, stainless steel, copper, aluminum and lead.
Dimensional Drawing
