1g Vegetable Tomato Seed Micro Multihead Weighing Machine 10 Head

Vegetable Seed Micro Multihead Weighing Machine / 1g Seeds Weigher

APPLICATION

The vegetable seed multihead weigher is a high-precision, computer-controlled weighing machine. It utilizes multiple weighing hoppers to rapidly calculate the optimal combination of seeds to achieve a precise target weight. This technology is essential for efficiently packaging expensive and minute vegetable seeds, ensuring portion accuracy and minimizing giveaway.

TECHNICAL SPECIFICATIONS

DIMENSIONAL DRAWING

TECHNICAL FEATURES

1. Ultra-Compact 0.5L Hoppers: Feature an ultra-low vibration design for smoother operation and higher weighing accuracy.
2. New Dual Parallel Linear Vibrators: Generate minimal vibration. Coupled with side-drive aluminum load cells, they ensure more precise readings and superior weighing accuracy.
3. Weight-Based Material Detection: Accurately controls the feeding duration and material layer thickness, guaranteeing consistent weighing precision.
4. Custom V-Shaped Linear Vibration Tray: Specifically designed for micro-weighing applications. Ensures uniform material distribution and high weighing accuracy.
5. Monolithic Chassis and Central Base: The integrated structure enhances overall machine rigidity, resulting in significantly shorter hopper stabilization time.
6. Elegant Design with Large-Radius Curved Edges: The cabinet features smooth, rounded edges and a fully sealed design on all sides, providing a robust, sturdy, and aesthetically pleasing appearance.

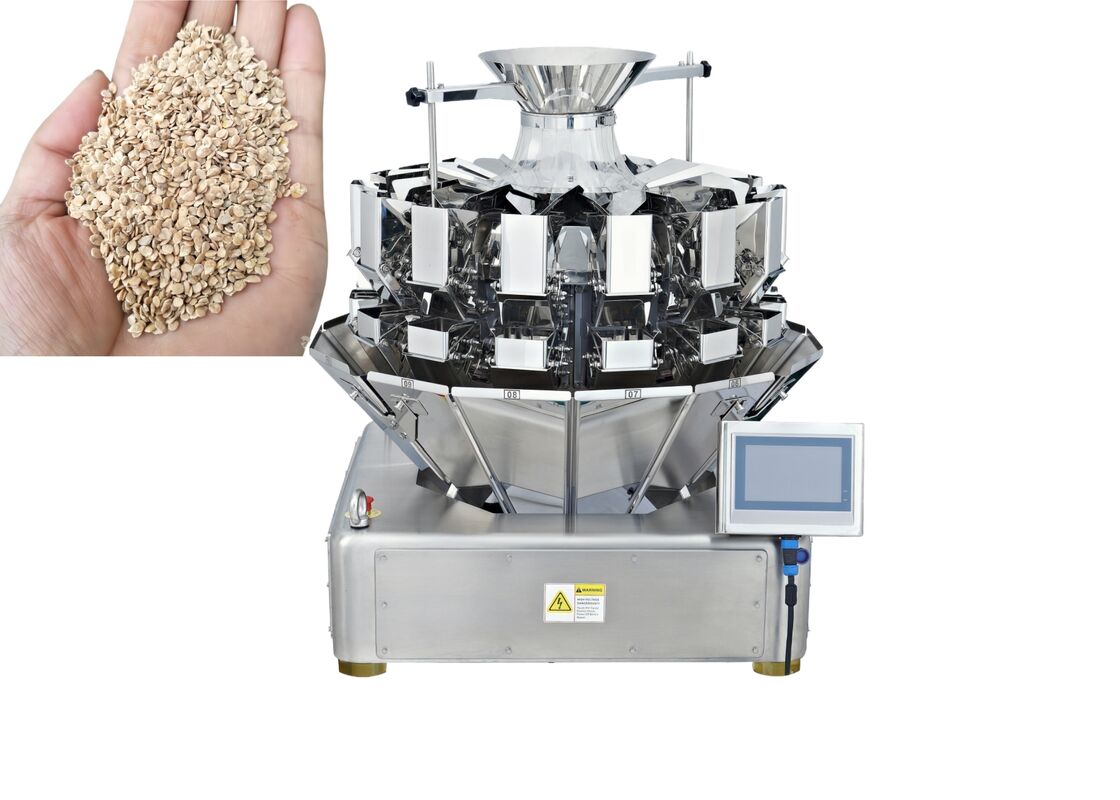

MACHINE PICTURE

FUNCTIONAL FEATURES

1. Custom High-Precision Load Cell: Utilizes specially manufactured load cells with high accuracy and superior resolution standards.
2. Factory Settings Restoration & Multi-Point Calibration: Features the ability to restore factory default parameters and supports multi-point weight calibration for enhanced accuracy across different ranges.
3. Automatic Pause on Material Depletion: Automatically pauses operation when material is low, ensuring more stable and consistent weighing results.
4. Extensive Memory & User-Friendly Interface: Stores up to 100 parameter sets for various material requirements, and includes a helpful on-screen menu guide for ease of learning and operation.
5. Independent Vibration Adjustment: Allows the amplitude of each linear vibrator to be adjusted independently during operation, promoting more uniform material feeding.
6. Multi-Language Support & Global Applicability: Offers a choice of multiple languages for convenient operation, making the unit suitable for the global market.
