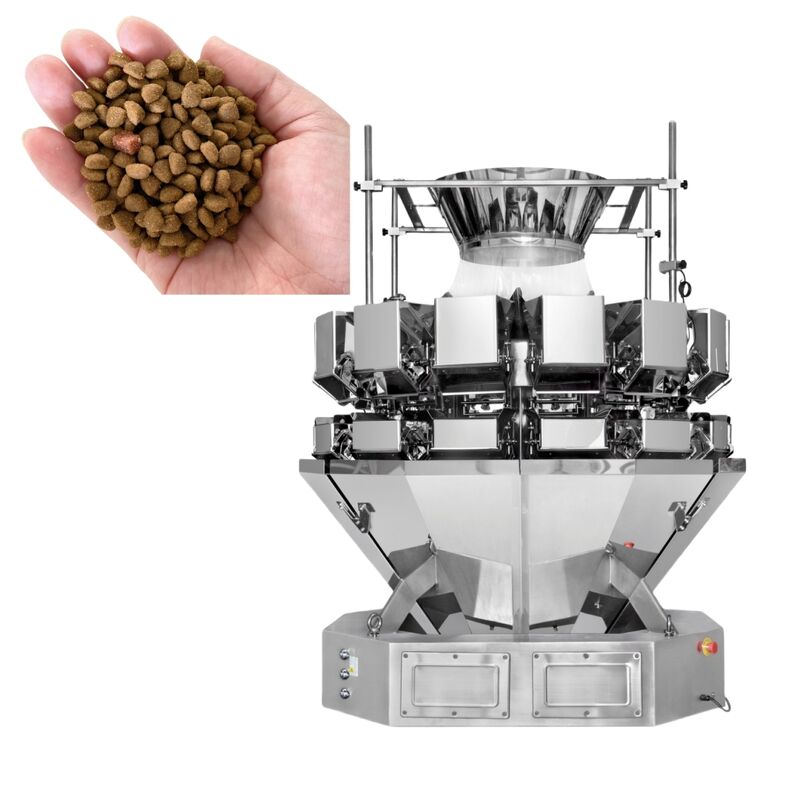

14 Head Multihead Weighing Machine For 1kg-5kg Dog Food packing

14-Head Combination Weigher for Dog Food Packaging | High-Speed, High-Accuracy 1kg-5kg Filling


DESCRIPTION

Optimized for Canine Nutrition: This advanced 14-head combination weigher is engineered specifically for the efficient and precise weighing of dry dog food, including kibble, chunks, and irregular shapes. It delivers exceptional accuracy across the demanding 1kg to 5kg weight range, ideal for bulk bags or large pouches.

APPLICATION

Ideal For: Pet food manufacturers packing bulk dry dog food into 1kg, 2kg, 3kg, 4kg, 5kg, and similar weight bags or boxes.

ADVANTAGES

1. 14 High-Capacity Weighing Heads: Features 14 independent weighing hoppers, each with a generous 5L volume capacity. This configuration enables rapid calculation of the optimal weight combination for maximum speed and precision.

2. Precision for Large Weights: Achieves outstanding weighing accuracy (±1-5 grams typical, depending on product characteristics and target weight) within the 1kg to 5kg range, ensuring compliance and minimizing giveaway.

3. High-Speed Operation: Significantly increases packaging line throughput compared to single-head scales or manual weighing. Capable of 30-50+ weighments per minute (dependent on product flow characteristics).

4. Built for Dog Food:

Handles Variety: Efficiently weighs diverse dog food types – small kibble, large biscuits, irregular chunks, and mixes.

Anti-Clogging Design: Optimized hopper geometry, vibration systems, and material flow paths minimize product bridging and sticking.

Hygienic Construction: Made from food-grade stainless steel (SS304) for easy cleaning and corrosion resistance, meeting pet food industry standards.

Gentle Product Handling: Minimizes product damage or breakage during the weighing process.

5. Large 5L Weighing Hoppers: Each hopper (approx. 1.32 US Gallons) is sized to handle the volume requirements of 1kg-5kg dog food portions efficiently, reducing the frequency of refills from the supply pool.

6. Enhanced Stability & Consistency: The 14-head design provides more weight combinations, leading to superior accuracy, stability (especially with variable product density), and reduced sensitivity to minor product fluctuations.

7. User-Friendly Control: Intuitive touchscreen HMI for easy recipe management (multiple weight targets), calibration, diagnostics, and performance monitoring.

8. Seamless Integration: Designed for easy connection to upstream supply systems (e.g., elevators, vibratory feeders) and downstream bagging or boxing machines.

TECHNICAL PARAMETERS

1. Versatile 5L Hopper Design

Accommodates wide range of standard bulk materials (snacks, granules, frozen goods, hardware)

Broad compatibility with products of varying densities (0.1–0.8 g/cm³)

2. Unified Modular Architecture

Mold-manufactured components ensure precision tolerances (±0.05mm)

Enhanced interchangeability of parts for reduced maintenance downtime

3. Smart Material Control (Optional)

Gravimetric material monitoring system

Dynamically adjusts feed duration and layer thickness

Ensures target weight consistency

4. Reinforced Structural Integrity

Thickened cast-aluminum central base

Reduces vibration transmission by ≥40%

TECHNICAL SPECIFICATIONS

DIMENSIONAL DRAWING



MACHINE PICTURES

Why Choose This Weigher for Dog Food?

• Maximize Profit: Minimize product giveaway through unparalleled accuracy in the 1-5kg range.
• Boost Productivity: Achieve significantly higher packaging line speeds.
• Ensure Consistency: Deliver precisely weighed portions every time, enhancing brand reputation.
• Reduce Downtime: Robust design and dog-food-optimized features minimize jams and cleaning interruptions.
• Meet Regulations: Designed with hygiene and traceability in mind for the pet food industry.

Ready to revolutionize your dog food packaging line efficiency and accuracy? Contact us today for a quote or demonstration!
