Product Details
Place of Origin: CHINA
Brand Name: P&Q
Model Number: HT-VFFS760
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Packaging Details: wooden case for export
Delivery Time: 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
|
Max Film Width:
|
760mm
|
Paking Weight:
|
1-5kg
|
Bag Size:
|
L (120-380) X W (100-350) Mm
|
Bag Shape:
|
Pillow Bag; Gusseted Bag
|
Air:
|
0.3m³/min
|
Power:
|
220V 50Hz 1 P 3KW / 380V 50Hz 3P 3KW
|
Weight:
|
800kg
|
Material:
|
SS304
|
|
Max Film Width:
|
760mm
|
|
Paking Weight:
|
1-5kg
|
|
Bag Size:
|
L (120-380) X W (100-350) Mm
|
|
Bag Shape:
|
Pillow Bag; Gusseted Bag
|
|
Air:
|
0.3m³/min
|
|
Power:
|
220V 50Hz 1 P 3KW / 380V 50Hz 3P 3KW
|
|
Weight:
|
800kg
|
|
Material:
|
SS304
|

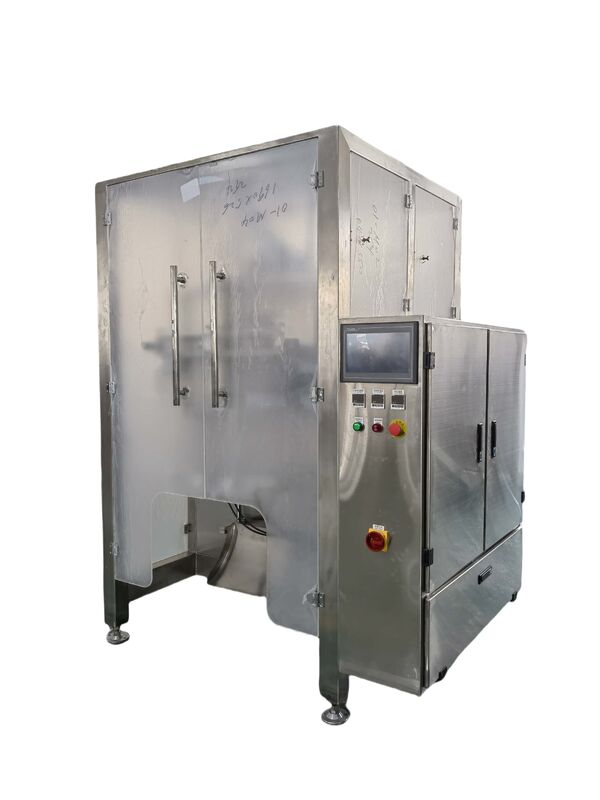

HT-VFFS760 Vertical Packaging Machine / 5KG Packing Machine/ Big Packing Machine
Product Description
With max film width 760mm, this vertical packing machine can be used for packing product from 1-5kg. The packaging machine can be equipped with different weighing and filling system for granular, powdery and liquid products.
1. Ultra fine powder packing (flour packing, milk powder packing, building material powder, coffee powder packing, seasoning powder packing, spice powder packing, toner packing etc)
2. Granule packing (fodder packing, animal feed packing, pet food packing, granular fertilizer packing, rice packing, sugar packing, salt packing, seeds packing, dried fruit packing, nut packing, peanuts packing, candies packing, coffee beans packing, beans packing)
3. Sheet product packing (potato chips packing, cookies packing)
4. Strip shaped product packing (noodles packing, Popsicle packing, French fries packing, bean sprout packing)
5. Paste packing (bean paste packing, paste packing, coating packing)
6. Mixed granule and liquid packing (pickle packing)
Technical Features
1. The machine integrates functions of bag making, filling, sealing, date printing, punching, counting into one.
2. Horizontal sealing can be driven by servo motor or cylinder to meet different situations.
3. The machine adopts international branded components with reliable and stable performance.
4. With 10” man-machine interface, easy to operate.
Technical Specifications
| Bag Shape | pillow bag, gusseted bag, bag with handle hole |
| Bag Making Speed | 6-50 bags/min |
| Bag Size | L (200-460) x W (160-345) mm |
| Max Film Width | 760mm |
| Core Inner Dia. | Φ75mm |
| Reel Outer Dia. | MaxΦ500mm |
| Machine Weight | 800kg |
| Compressed Air Requirement | 0.6MPa 0.65m³/min |
| Machine Size | L1680 x W1600 x H2030mm |
| Power | 380V 3 Phases 50Hz 3KW |
