P&Q International Co., Ltd.
1624555459@qq.com
+86-18019558223
Product Details
Place of Origin: CHINA
Brand Name: P&Q
Model Number: HT-VFFS540
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Packaging Details: wooden case for export
Delivery Time: 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
|
Max Film Width:
|
540mm
|
Speed:
|
Max 70bpm
|
Bag Size:
|
L (80-360) X W (100-245) Mm
|
Bag Shape:
|
Pillow Bag; Gusseted Bag
|
Air:
|
0.25m³/min
|
Power:
|
220V 50Hz 1 P 3KW / 380V 50Hz 3P 3KW
|
Weight:
|
560kg
|
Material:
|
SS304
|
|
Max Film Width:
|
540mm
|
|
Speed:
|
Max 70bpm
|
|
Bag Size:
|
L (80-360) X W (100-245) Mm
|
|
Bag Shape:
|
Pillow Bag; Gusseted Bag
|
|
Air:
|
0.25m³/min
|
|
Power:
|
220V 50Hz 1 P 3KW / 380V 50Hz 3P 3KW
|
|
Weight:
|
560kg
|
|
Material:
|
SS304
|

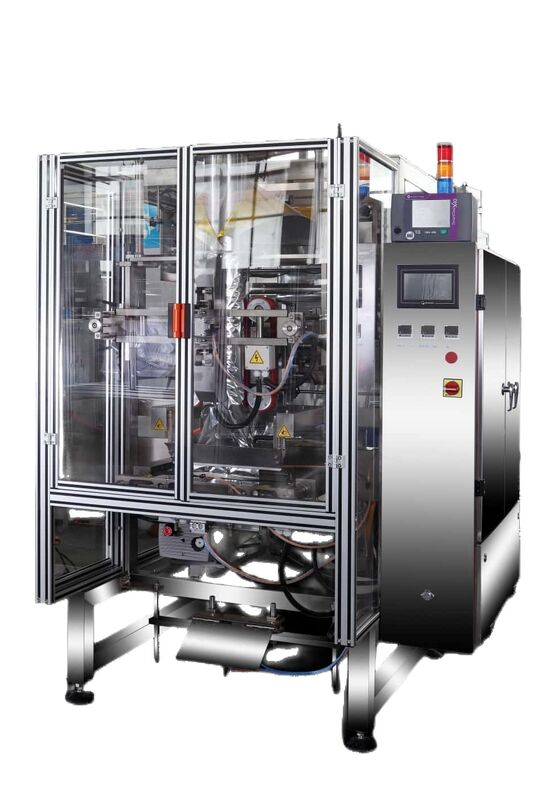

HT-VFFS540 Vertical Packaging Machine / Max 70bpm/ Servo-driven Packing Machine
Product Description
This vertical packing machine adopts servo motor for horizontal sealing with high speed and stable performance. The packaging machine can be equipped with different weighing and filling system for granular, powdery and liquid products. It can be used for peanuts packing, candies packing, cookies packing, potato chips packing, rice packing, sugar packing, beans packing, dried fruit packing, pet food packing, ground coffee packing, milk powder packing, detergent powder packing, shampoo packing, ketchup packing, spices packing etc.
Technical Features
1. It adopts servo motor for horizontal sealing with high speed, adjustable pressure, stable sealing performance and low noise.
2. The film transport system adopts servo motor with reliable, stable and accurate film pulling and long service life.
3. Film releasing is not affected by film material, stable and reliable.
4. Various types of laminated film can be used on the machine such as PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil film.
5. Can be equipped with hole-punching system to make handle hole on bag
Technical Specifications
| Bag Shape | pillow bag, gusseted bag, bag with handle hole |
| Packing Speed | 10-60 bags/min |
| Pouch Size | L (80-360) x W (100-260) mm |
| Max Film Width | 540mm |
| Core Inner Dia. | Φ75mm |
| Reel Outer Dia. | MaxΦ450mm |
| Machine Weight | 660kg |
| Compressed Air Requirement | 0.25m³/min |
| Machine Size | L1565 x W1215 x H1660mm |
| Power |
380V 3 Phases 50Hz 2.5KW 220V 1 Phase 50Hz 2.5KW |
