Product Details
Place of Origin: CHINA
Brand Name: P&Q
Model Number: HTCS-50
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Packaging Details: wooden case for export
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 Sets per Week
|
Min Case Size:
|
L200×W150×H150mm
|
Max Case Size:
|
L600×W500×H500mm
|
Machine Size:
|
L1770×W850×H1520mm
|
Tape Width:
|
48mm/60mm/75mm
|
|
Min Case Size:
|
L200×W150×H150mm
|
|
Max Case Size:
|
L600×W500×H500mm
|
|
Machine Size:
|
L1770×W850×H1520mm
|
|
Tape Width:
|
48mm/60mm/75mm
|

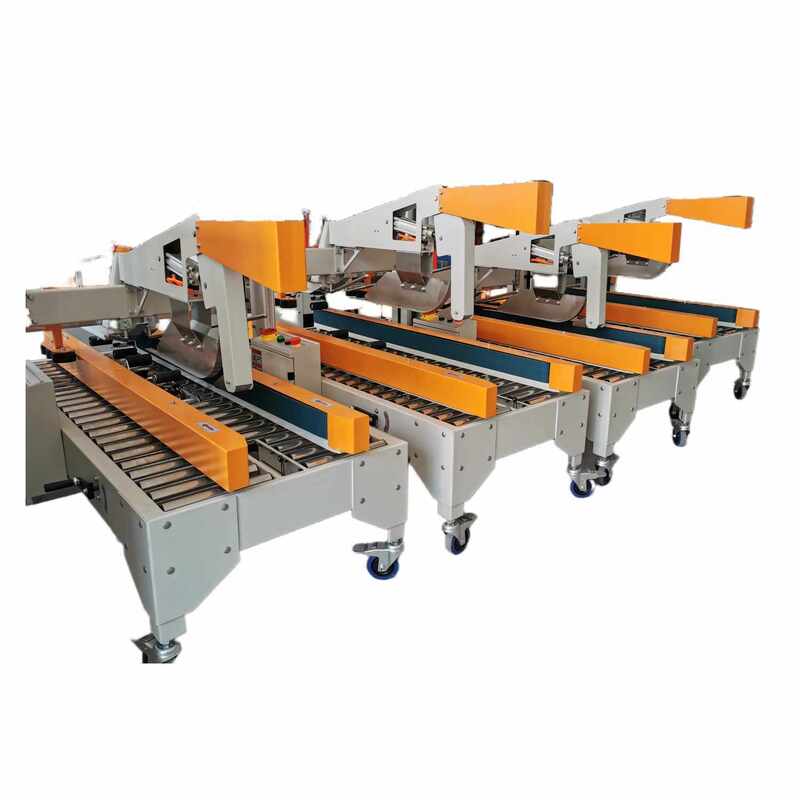

Double Column Fully Automatic Versatile Carton & Case Sealing Machine
DESCRIPTION
The new double-column folding and sealing machine is an optimized and upgraded product based on the single-column folding and sealing machine. The double-column clearly reflects the firmness and stability of the machine, so that there will be no shaking when the folding arm fold the lid quickly. And the decibel of noise is greatly reduced. An independent electric box control system is also added, which is more convenient to operate and has a high safety factor. At the same time, the double column can also increase the upper drive system according to the characteristics of the customer's product.
The case sealing machine has been widely used in food, medicine, beverage, tobacco, daily chemical, automobile, cable, electronics and other industries.
| Carton Sealing Speed | 0-20m/min |
| Max Carton Size | L600×W500×H500mm |
| Min Carton Size | L200×W150×H150mm |
| Power | 400W |
| Power Supply | 220V/380V 1P/3P 50/60Hz |
| Machine Size | L1770×W850×H1520 |
| Tape | W48mm/60mm/75mm |
| Machine Weight | 250KG |
TECHNICAL FEATURES
Automatic Folding and Sealing
The upper cover of the carton is folded automatically, and the upper and lower sides are automatically sealed with tape, which is economical, stable and fast;
Self-adjusting of Height and Width
Manually adjust the width and height of the machine according to the carton specifications, suitable for sealing cartons of the same specification at the same time;
Labor Saving
The packaging of goods is completed by machines instead of manual work;
High Efficiency
Stable sealing speed, higher efficiency;
Simple Operation
Simple operation panel, economical, durable, safe and low failure rate;
Safety Protection
Equipped with blade guards. Avoid accidental stabbing during operation;
