Product Details
Place of Origin: CHINA
Brand Name: P&Q
Model Number: HT-AB750S
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases for Export
Delivery Time: 90 Working Days
Payment Terms: T/T, L/C
|
Power Supply:
|
220V/50Hz
|
Power Consumption:
|
1.5 KW
|
Machine Weight:
|
250 Kg
|
Machine Dimensions:
|
1500mm X 800mm X 1400mm
|
Machine Type:
|
Automatic
|
Filling Accuracy:
|
±1%
|
Bag Size Range:
|
10cm X 15cm To 50cm X 70cm
|
Bag Material:
|
Plastic Film, Paper Bags
|
Bagging Speed:
|
30-60 Bags Per Minute
|
Warranty:
|
12 Months
|
Operating Temperature:
|
0°C To 45°C
|
Material Compatibility:
|
Granules, Powders, Small Parts
|
Sealing Method:
|
Heat Sealing
|
Control System:
|
PLC With Touch Screen
|
|
Power Supply:
|
220V/50Hz
|
|
Power Consumption:
|
1.5 KW
|
|
Machine Weight:
|
250 Kg
|
|
Machine Dimensions:
|
1500mm X 800mm X 1400mm
|
|
Machine Type:
|
Automatic
|
|
Filling Accuracy:
|
±1%
|
|
Bag Size Range:
|
10cm X 15cm To 50cm X 70cm
|
|
Bag Material:
|
Plastic Film, Paper Bags
|
|
Bagging Speed:
|
30-60 Bags Per Minute
|
|
Warranty:
|
12 Months
|
|
Operating Temperature:
|
0°C To 45°C
|
|
Material Compatibility:
|
Granules, Powders, Small Parts
|
|
Sealing Method:
|
Heat Sealing
|
|
Control System:
|
PLC With Touch Screen
|

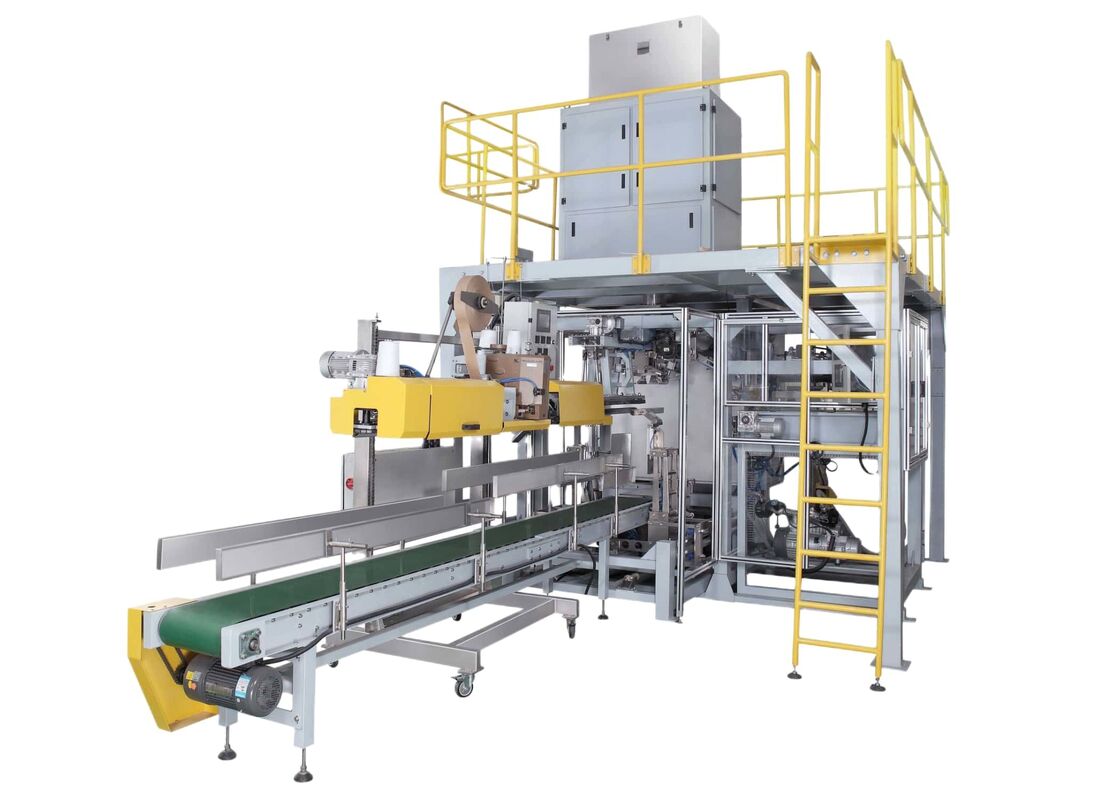

Automatic Bagging Machine for 25-50kg Granules / Fully Automatic Open-Mouth Baggers
DESCRIPTION
This unit is used for automatic bagging of 25-50kg granules like sugar, rice, seeds, beans, feed, fodder, plastic particles, cat food, dog food etc. It includes one set of weighing machine, one set of bag-feeding machine, one set of platform with ladder and railing, one set of bag closing machine, one set of product conveyor and one set of controlling system. It has functions of automatic weighing, bag feeding, filling, sewing, conveying etc. This unit has been widely used in food, agriculture and chemical industries etc.
TECHNICAL SPECIFICATIONS
| Packing Range | 25-50kg |
| Suitable for | granular product |
| Packing Speed | 500-750bags/h |
| Bag Length | 800-1000mm |
| Bag Width | 500-600mm |
| Power | 380V 50Hz 12KW |
| Air | 0.5-0.7MPa 15Nm³/h |
| Machine Size | 5600x3500x4700mm |
| 220.47”x137.8”x185.04” |
DIMENSIONAL DRAWING
With Sewing Machine
With Sealing Machine
MAIN COMPONENTS LIST
| NO. | ITEM | BRAND | BRAND ORIGIN |
| 1 | PLC | Siemens (1200) | Germany |
| 2 | Touch Screen | Siemens (10”) | Germany |
| 3 | Vacuum Pump | ZD | China |
| 4 | Bearing | HRB | China |
| 5 | Servo Motor | Inovance | China |
| 6 | Motor | CPG/WANSHSIN | China |
| 7 | Air Unit | SMC | Japan |
| 8 | Magnetic Switch | SMC | Japan |
| 9 | One-way Throttle Valve | SMC | Japan |
| 10 | Solenoid Valve | SMC | Japan |
| 11 | Indicator Light, Button | Schneider | France |
| 12 | Low-voltage Circuit Breaker | Schneider | France |
| 13 | Intermediate Relay | Schneider | France |
| 14 | Air Switch | Schneider | France |
| 15 | Rotary Knob | Schneider | France |
| 16 | VFD | Inovance | China |
| 17 | AC Contactor | Schneider | France |
| 18 | Load Cell | Mettler Toledo | Switzerland |
BAG PICTURES
